Calf Warming Box
€12,00
Calf Warming Box
€12,00
A portable heated box that brings a chilled newborn calf back from the edge, from a 1988 USDA / Minnesota Extension plan. A 5/8" exterior plywood box on 2×4 skids, 4'-0" wide × 2'-6" deep and 4'-0" tall at the door falling to 3'-8" at the back, holds a 1500-watt thermostatically-controlled heater and a 250 CFM fan behind expanded metal, with a plastic-coated perforated floor so warm air circulates under the calf. A 3'-0" square strap-hinged calf door with a 12" plexiglass window lets you watch drying progress, and an adjustable 1×6 cover meters gravity ventilation. Suitable indoors or outdoors (the sheet calls for preservative pressure-treated lumber and waterproofing outside).
At a glance
- Size: 48" W × 30" D × 48" H at the front, 44" at the back (122 × 76 × 122/112 cm) · 49-1/2" (126 cm) over the skids
- Skill: Beginner
- Build time: 1 weekend (needs an electrician)
- Materials: approx. US$550–1,200
- In the plan: 21-page PDF, US Letter, 28 illustrated steps, imperial, with metric in the lists and steps

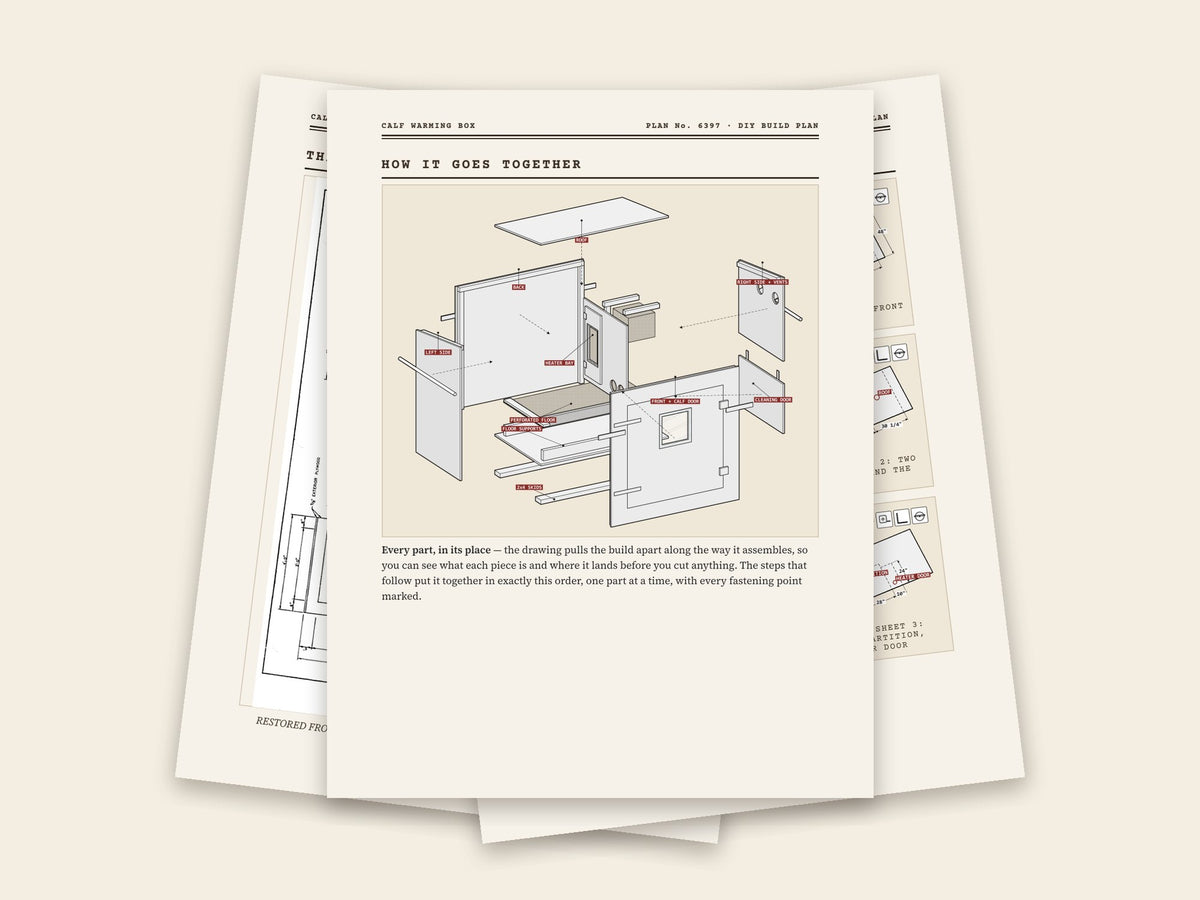

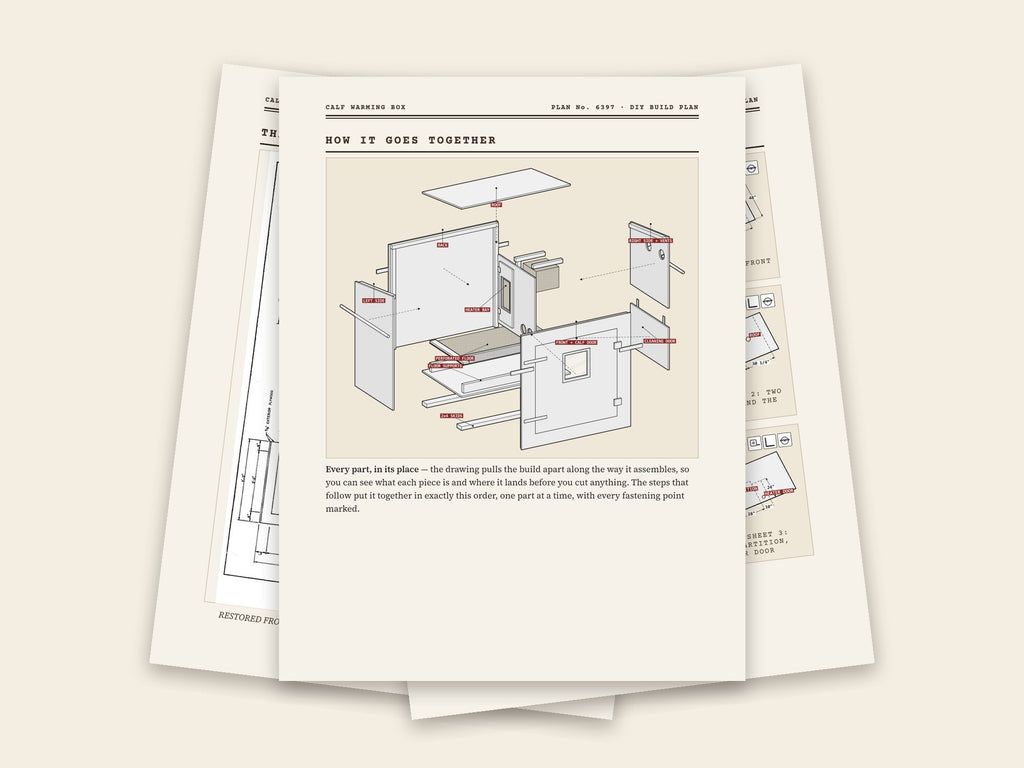

Inside the 21-page plan
- The original public-domain sheet, restored and reproduced in full
- An exploded drawing that shows how every part goes together
- Dimensioned views of the finished build, in feet and inches
- Materials list and hardware schedule, with today's actual lumber sizes and metric equivalents
- Cut list, so you can cut everything before you start assembling
- Clear illustrated step-by-step assembly drawings: one job per step, every part drawn, fastener positions marked
- A modern-build track: screws and today's materials, same dimensions
- The Remix: build it as an Insulated Dog House
The PDF plan is a digital download; nothing ships. The Printed Workshop Edition (PDF included) and the wall prints are printed to order and shipped. Adapted from USDA Cooperative Extension Service plan 6397, a public-domain original. Restored, redrawn and edited by Square & Furrow, produced with AI-assisted tools and checked against the original drawing.
Restored USDA original
Imperial + metric
Cut list & checklist
Instant PDF download

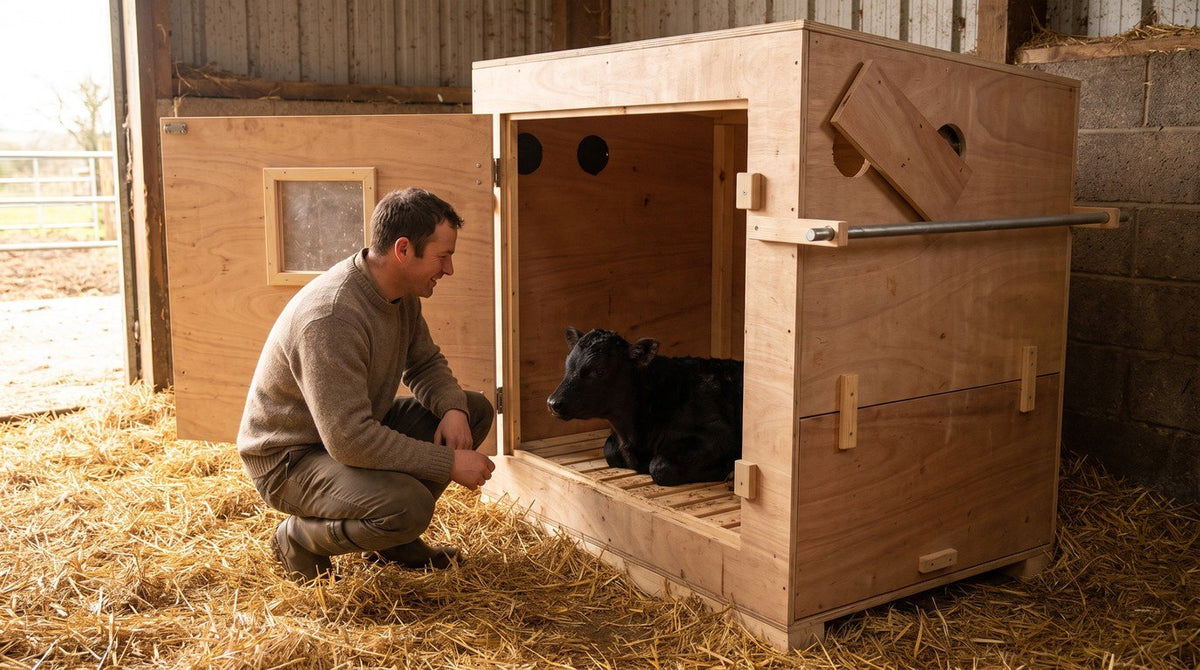

Built to work
Calf Warming Box
Drawn by agricultural engineers, proven on working farms, and redrawn for the way you build today.
Rendering

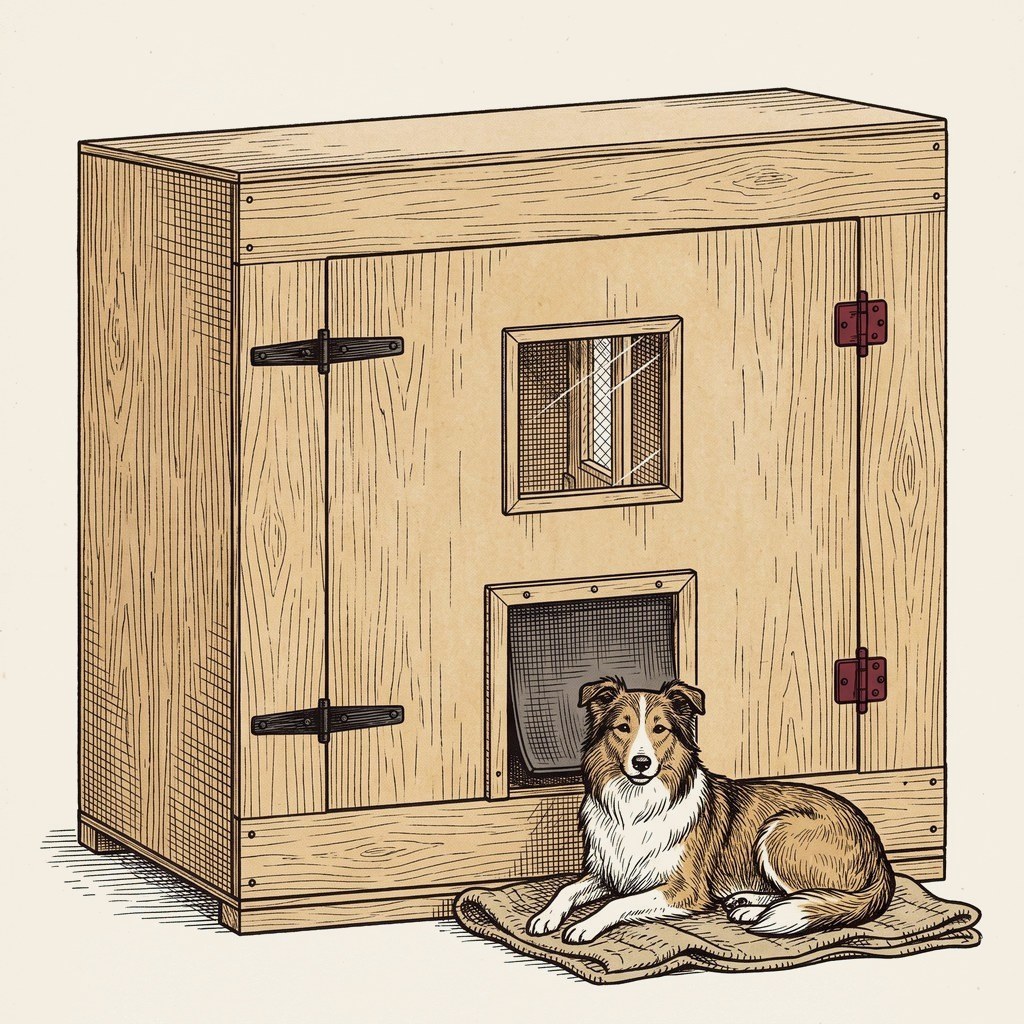

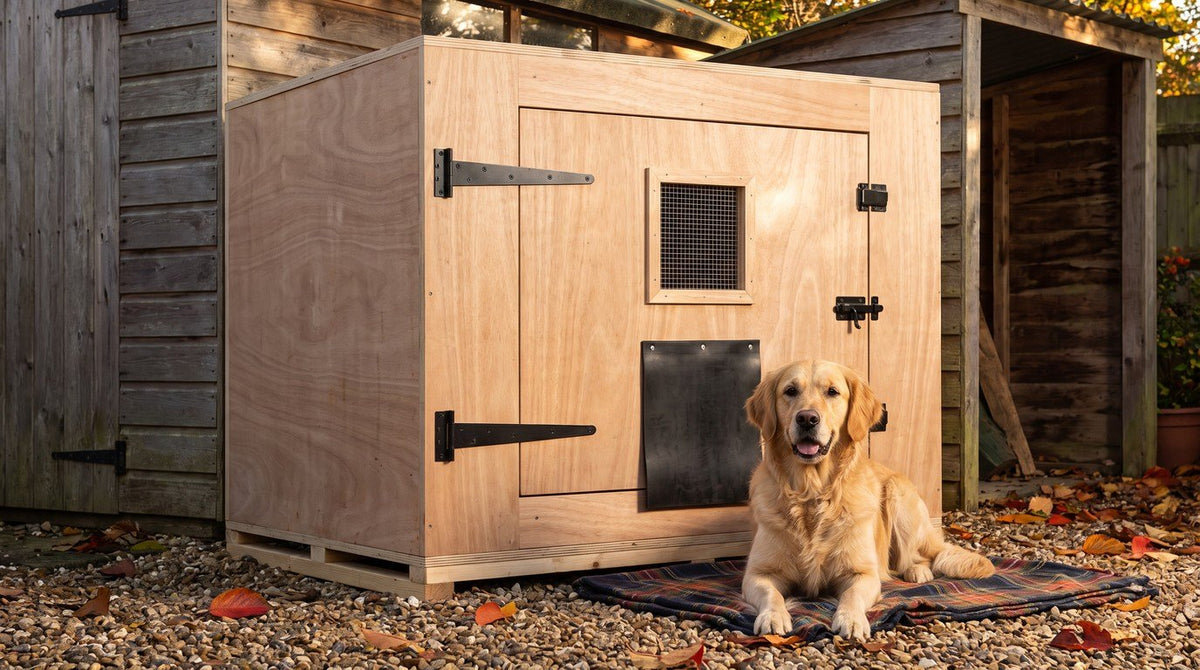

This fall · The Remix
Or build it as an Insulated Dog House
The same proven structure, given a new job in the garden or the backyard. It's included in this plan: a dedicated page shows exactly what changes and what stays the same.
Drawn for the plan

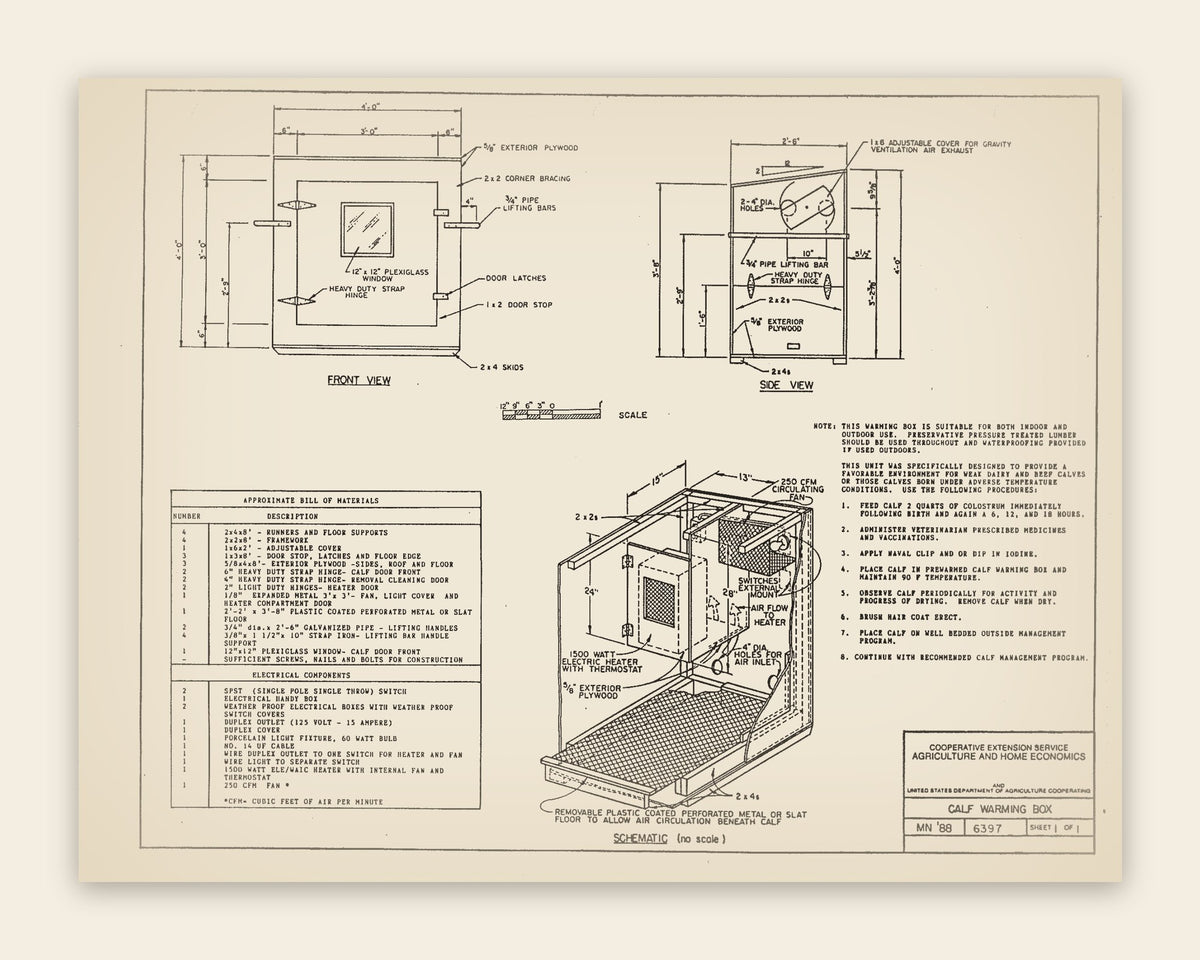

From the USDA archive
Restored from the original plan No. 6397
From the archive
USDA 6397 (Minnesota Extension · 1988)
Public domain · restored by Square & Furrow
This is the public-domain sheet the agricultural engineers drew. We restore it and reproduce it in full inside your plan, then rebuild it as a modern edition: today's lumber sizes, metric measurements, a cut list and illustrated steps. Every dimension is checked against the original.

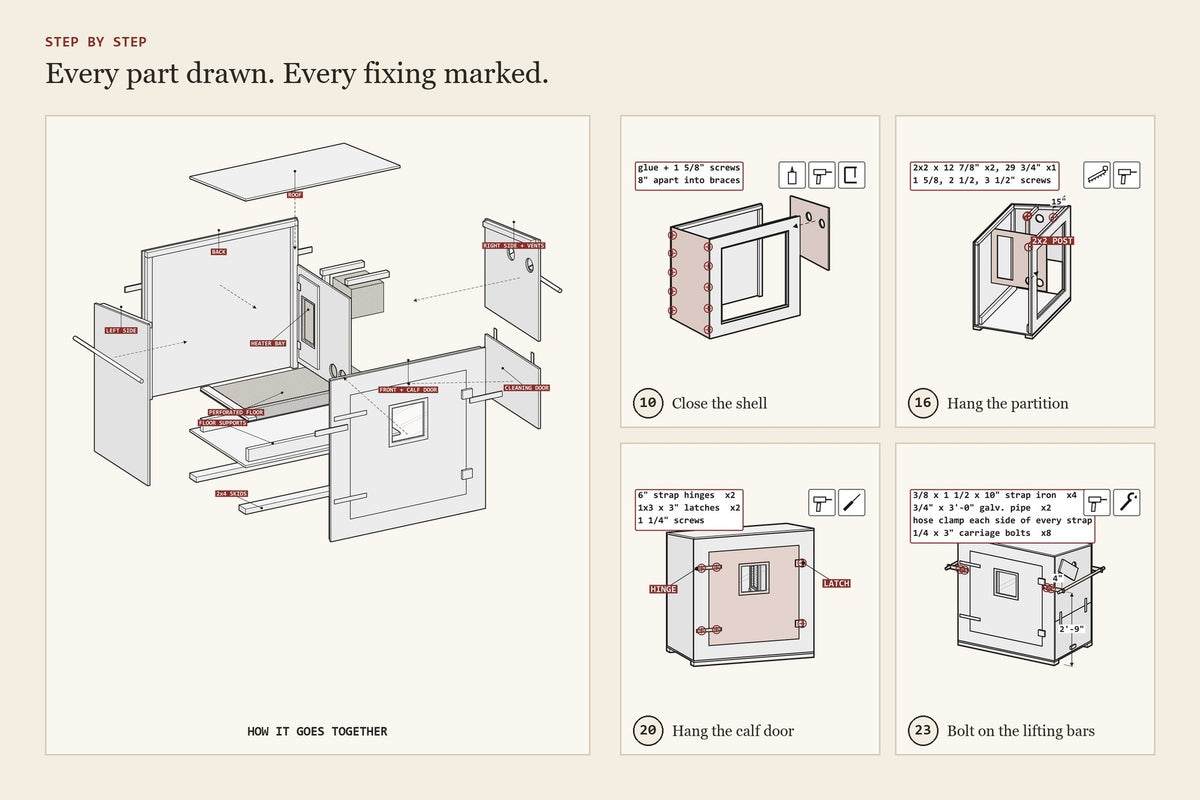

Step by step
Every part drawn. Every fixing marked.
Each step is one job with its own clear drawing: the parts it adds are shaded, every nail and screw position is marked, and the hardware and tools sit right beside it. An exploded view shows how the whole build goes together before you make a single cut.
Before you build
Your tools & materials checklist
Tick what you already have. Whatever is left is your shopping list. Your ticks are saved on this device, so you can come back to it from the lumber yard.
0 of 0 on hand
Tools
Materials
Lumber — use preservative pressure-treated stock and waterproof it if the box lives outdoors.
Questions about this plan
What are the finished dimensions?
48" W × 30" D × 48" H at the front, 44" at the back (122 × 76 × 122/112 cm) · 49-1/2" (126 cm) over the skids. The drawings are dimensioned in feet and inches; the materials list, cut list and steps give metric sizes alongside.
What skill level do I need, and how long does it take?
It's rated beginner. Expected build time: 1 weekend (needs an electrician). Each step names the tools it uses, so it's written for first-time builders.
How much does it cost to build?
Roughly US$550–1,200 in materials at typical US lumber-yard prices. Prices vary a lot by region, so price the materials list at your local yard before you start.
What tools do I need?
Level (4-ft), Circular saw, Jigsaw, Tin snips, Drill/driver + bits, 4" hole saw, Socket & wrench set, Clamps, Licensed electrician (wiring), plus a tape, pencil, safety glasses, hearing protection and gloves. The interactive checklist on this page lets you tick off what you already own.
Is this an original USDA plan?
Yes. It is restored from USDA 6397 (Minnesota Extension, 1988), a public-domain USDA Cooperative Extension Service plan. We redrew it as a modern build guide with a materials list, metric sizes, a cut list and clear illustrated step-by-step assembly drawings, every part drawn. Every dimension follows the original drawing, and the original sheet is reproduced inside.
Can a beginner follow it?
Yes. Each step is a single job with its own drawing: the parts that step adds are shaded, the nails, screws and bolts it drives are marked where they go, and the hardware for that step is listed beside it. An exploded drawing at the front shows how the whole build goes together before you cut anything.
Can I build it for something other than farm use?
Yes. The plan includes a remix page that turns the same build into an insulated dog house (insulated pet shelters), showing what changes and what stays the same.
What do I get?
A 21-page print-ready PDF (US Letter) to download after purchase. It prints well at home or at a copy shop, and reads fine on a tablet in the workshop.
