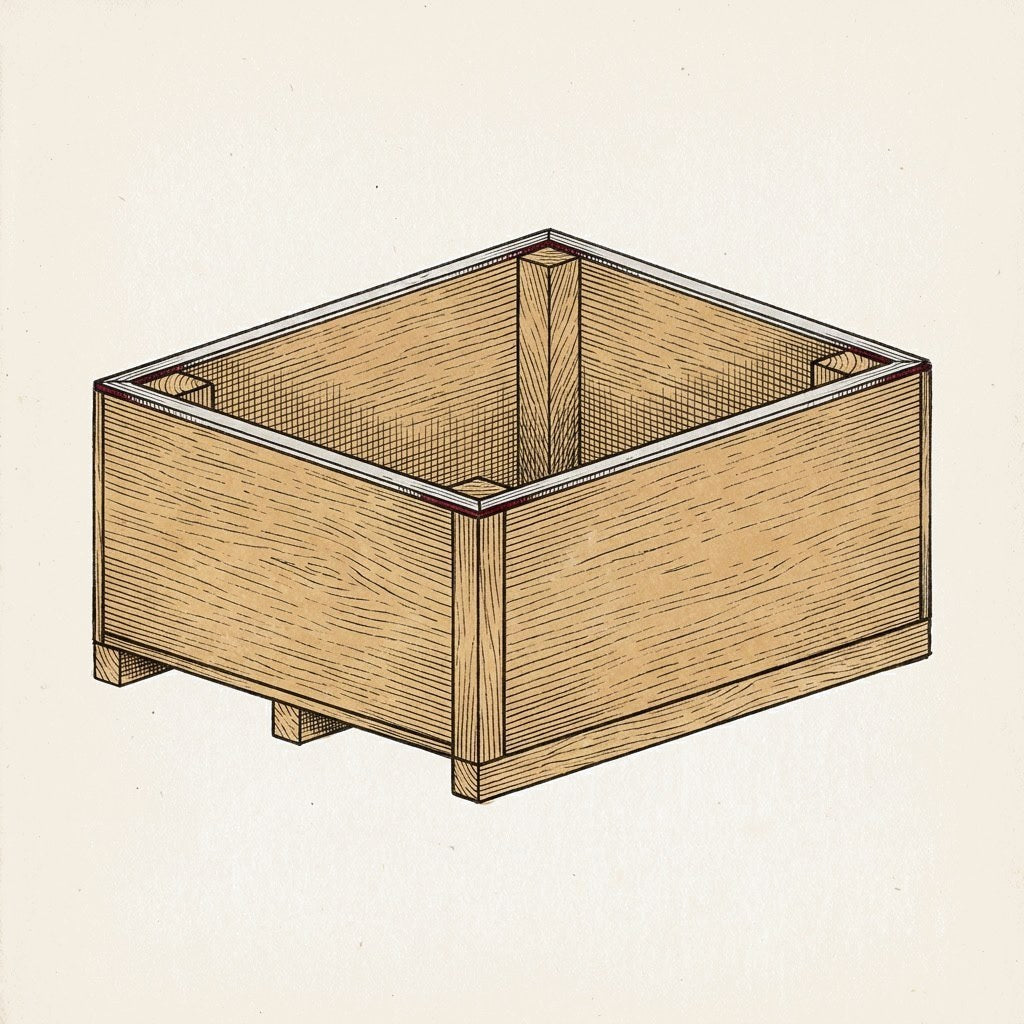

The 47 × 40 sibling of the standard produce bin, from a 1971 USDA / American Plywood Association Extension plan. The sheet sizes it to fit flatbed trucks, closed vans and refrigerated railroad cars, and the 47-inch dimension keeps it inside most automatic bin-handling equipment built for the standard 47 × 47 bin. Four 5/8" exterior plywood walls stand on a slotted plywood floor and lock to four 4×4 corner posts ripped on the diagonal with three U-bolts a corner. Underneath run two built-up ply-stringers along the 47-inch edges and a 2×4 laid flat down the middle; the 9-inch gaps between the stringer blocks pass the handling equipment's tines.
At a glance
- Size: 47" W × 40" D × 28 1/8" H (119 × 102 × 71 cm) · 39 1/4" D if trimmed to ASAE S337
- Skill: Beginner
- Build time: 1 day (5–7 h)
- Materials: approx. US$85–130
- In the plan: 20-page PDF, US Letter, 26 illustrated steps, imperial, with metric in the lists and steps
Inside the 20-page plan

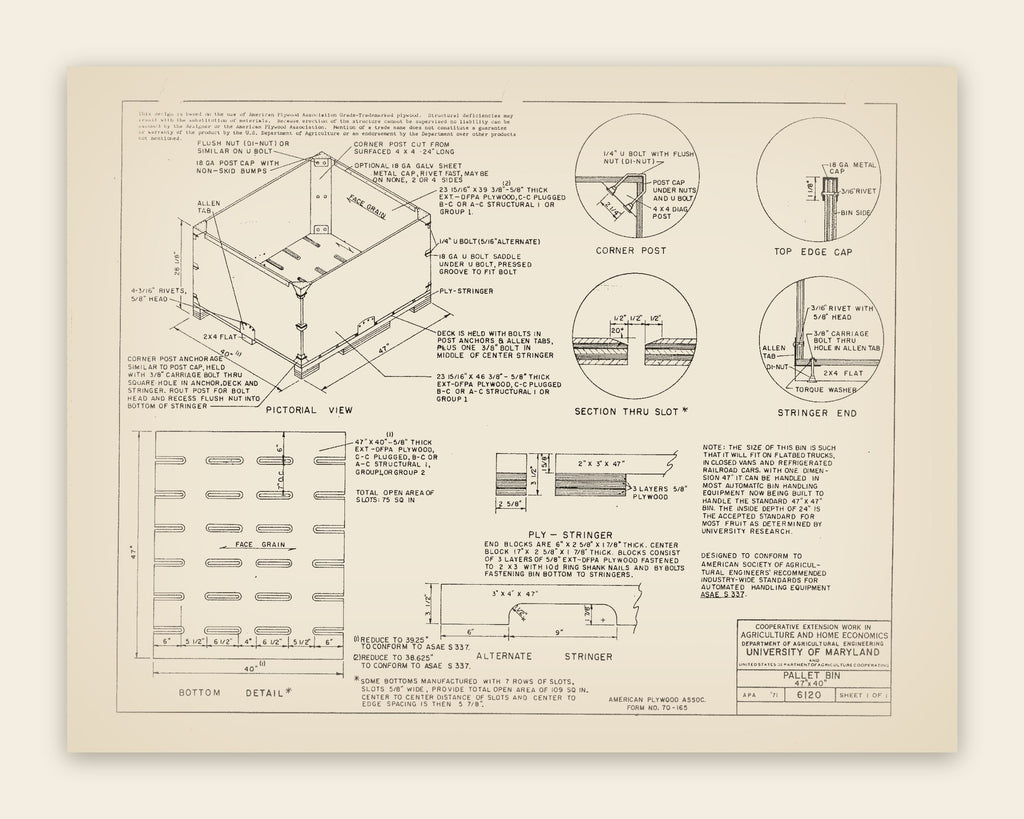

- The original public-domain sheet, restored and reproduced in full

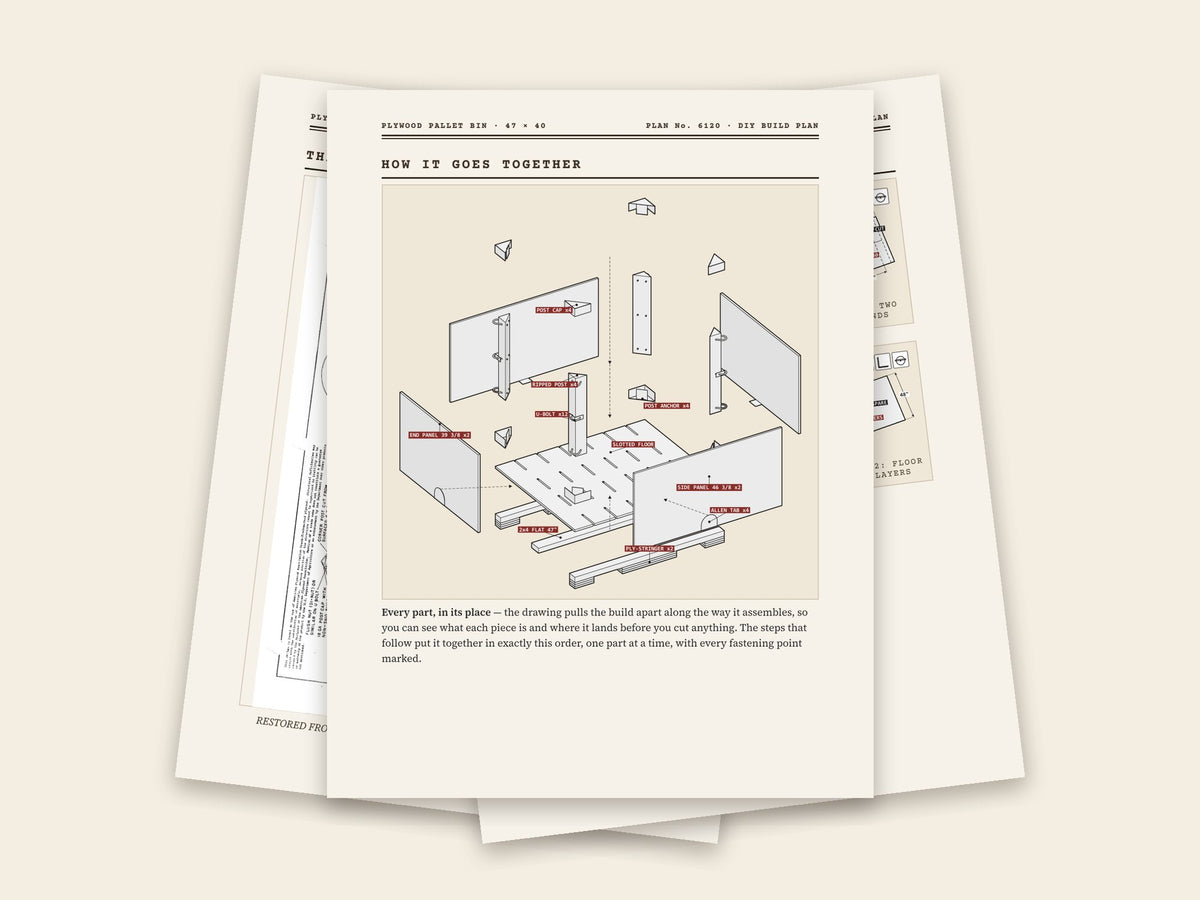

- An exploded drawing that shows how every part goes together
- Dimensioned views of the finished build, in feet and inches
- Materials list and hardware schedule, with today's actual lumber sizes and metric equivalents
- Cut list, so you can cut everything before you start assembling
- Clear illustrated step-by-step assembly drawings: one job per step, every part drawn, fastener positions marked
- A modern-build track: screws and today's materials, same dimensions
- The Remix: build it as a Rolling Herb Cart
The PDF plan is a digital download; nothing ships. The Printed Workshop Edition (PDF included) and the wall prints are printed to order and shipped. Adapted from USDA Cooperative Extension · American Plywood Assoc. plan 6120, a public-domain original. Restored, redrawn and edited by Square & Furrow, produced with AI-assisted tools and checked against the original drawing.
Restored USDA original
Imperial + metric
Cut list & checklist
Instant PDF download
Built to work
Plywood Pallet Bin · 47 × 40
Drawn by agricultural engineers, proven on working farms, and redrawn for the way you build today.
Rendering
This fall · The Remix
Or build it as a Rolling Herb Cart
The same proven structure, given a new job in the garden or the backyard. It's included in this plan: a dedicated page shows exactly what changes and what stays the same.
Drawn for the plan
From the USDA archive
Restored from the original plan No. 6120
From the archive
USDA / APA 6120 (Univ. of Maryland Extension · 1971)
Public domain · restored by Square & Furrow

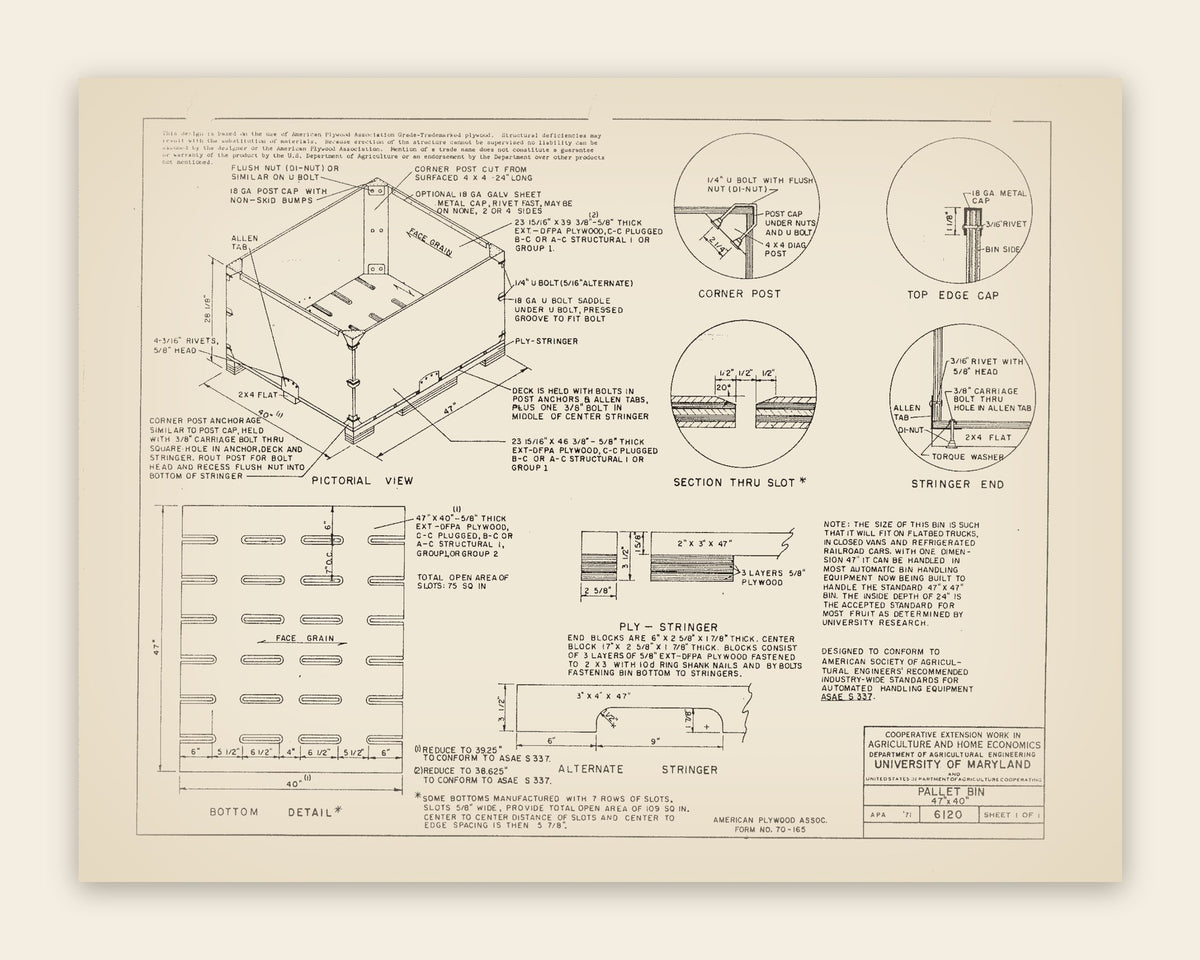

This is the public-domain sheet the agricultural engineers drew. We restore it and reproduce it in full inside your plan, then rebuild it as a modern edition: today's lumber sizes, metric measurements, a cut list and illustrated steps. Every dimension is checked against the original.
Step by step
Every part drawn. Every fixing marked.

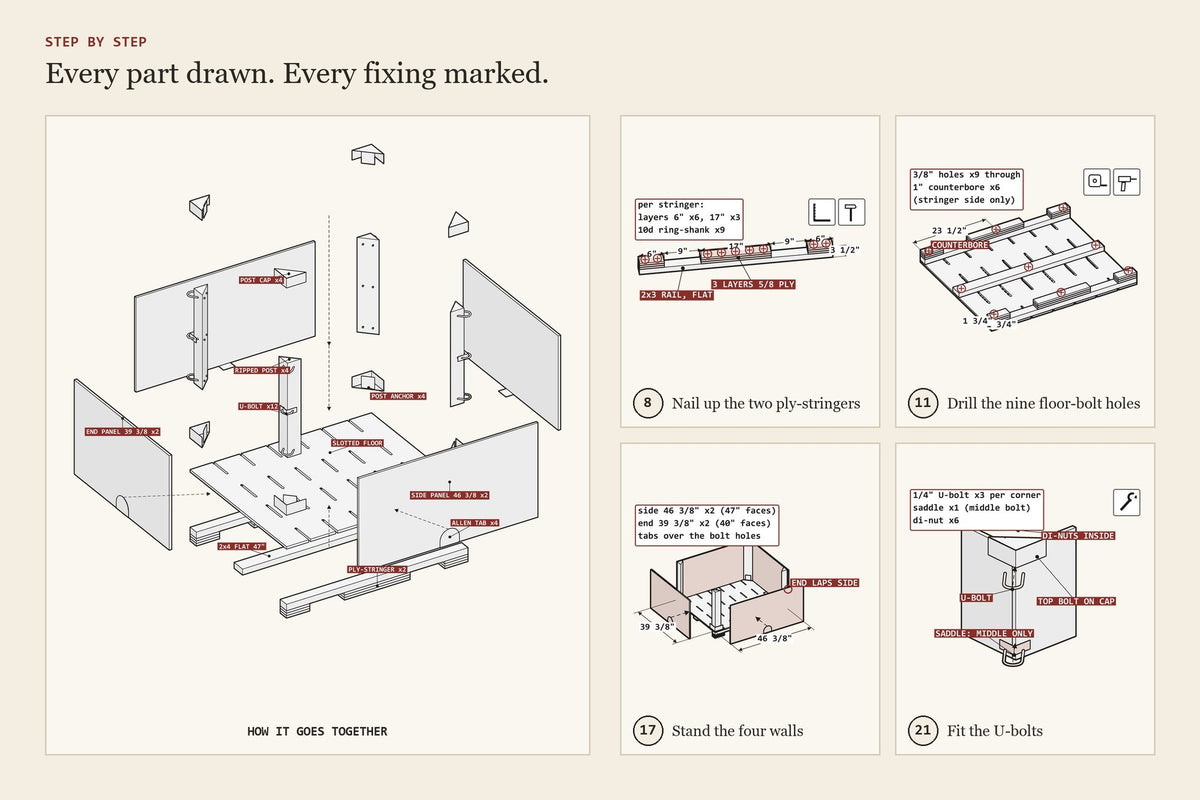

Each step is one job with its own clear drawing: the parts it adds are shaded, every nail and screw position is marked, and the hardware and tools sit right beside it. An exploded view shows how the whole build goes together before you make a single cut.
